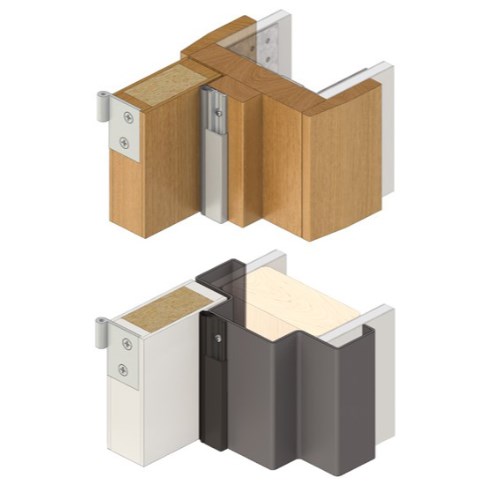

A weather and acoustic seal, suitable
for rebated frames. RP94Si is quick
and easy to install, either mitred or
butt jointed to the head and jambs
without removing the door. Slotted
for installation adjustment, the soft
silicon bulb accommodates a tighter
seal and with a tamper proof cover
strip, provides a fit and forget feature.
Can be used in conjunction with
Raven door bottom seals, astragals
and threshold plates.
Note: The tamper proof aluminium
cover strip is not recommended for
removal once installed. Refer to RP78Si
or RP10Si for this feature.
-
Location:Head and jambs of single
and double butt hinged doors.
-
Min/Max Gap:0mm to 6mm.
-
Finish: Satin clear (silver), black
anodised aluminium (15µm) or paint
at extra cost (cover strip only).
-
Fixing:Screw fix. Zinc plated, cross
recess head S.T. screws and cover
strip supplied.
-
Seal:RP394Si. Grey or black silicon
rubber (SE).
-
Sizes:Available in door set sizes or
stock lengths.
- Cert. GVYI.R37913.
-
Acoustic AUS/NZ:NCC Spec. F5.5.
-
UK/EU:Approved Document E. Rated
to BS EN ISO 717-1.
-
Fire AUS/NZ: NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2 & App.
C6.1.1.
-
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
1634-1).
- FRL & FRR-/240/30 and FD240.
- Gasket flammability index 1 when
tested to AS1530.2.
-
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”
-
Energy NCC Pt. 3.12.3.3 & J3.4
RAVEN RP94Si Perimeter Seal 1000mm
