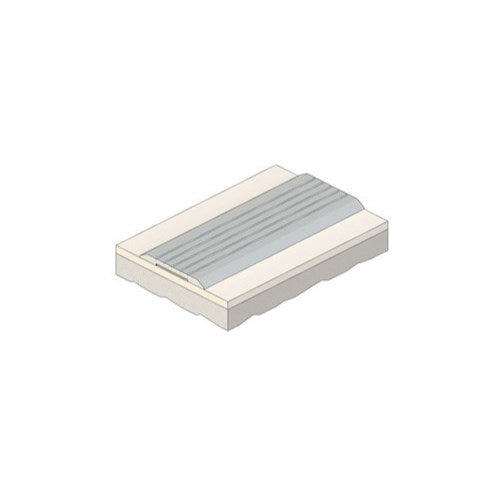

Low profile threshold plates that can
be used in conjunction with Raven
door bottom seals to prevent rain,
draught, noise and smoke infiltration.
-
Location:Door sill.
-
Min/Max Gap:0mm to 6mm.
-
Finish: Satin clear (silver) or bronze
anodised aluminium (25µm).
-
Fixing:Screw fix or builders
adhesive for concealed fixing (user
determined). Colour matched zinc
plated, cross recess head CSK S.T.
screws supplied.
-
Sizes:Available in stock lengths.
- Cert. GVYI.R37913
-
Access & Mobility AUS/NZ:NCC
D2.15 & D3.3. AS1428.1. NZ BC
Compliance Doc. D1/AS1 1.3.2.
-
UK/EU:Approved Document M.
-
Fire AUS/NZ: NCC Spec. C3.4.
AS1530.4 & AS/NZS 1905.1. NZ BC
Compliance Doc. C/AS1 6.19.2(a) &
App. C6.1.1.
-
UK/EU:Approved Document B.
BS 476 Pt. 20 & 22 (similar to BS EN
1634-1).
- FRL & FRR-/240/30 and FD240.
- when used with a BAL rated
door bottom seal in accordance with
AS 3959.
RAVEN RP95 Threshold Plate 1000mm
