Raven RP96
  • Specification
  • Downloads

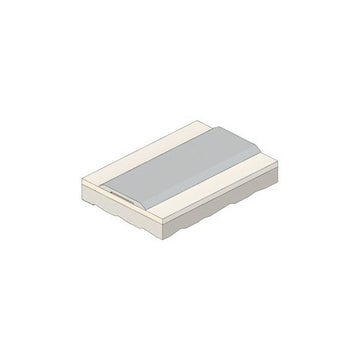

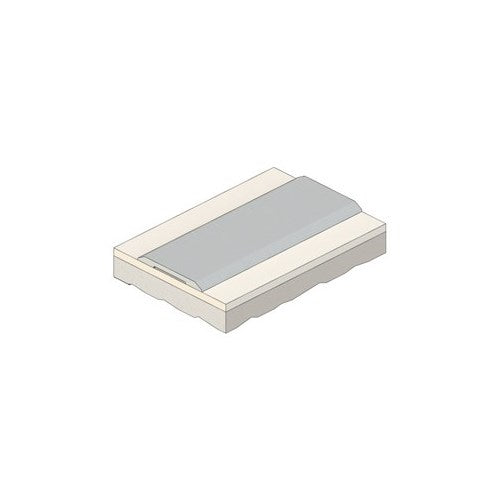

Low profile threshold plates that can be used in conjunction with Raven door bottom seals to prevent rain, draught, noise and smoke infiltration.

  • Location:Door sill.
  • Min/Max Gap:0mm to 6mm.
  • Finish: Satin clear (silver) or bronze anodised aluminium (25µm).
  • Fixing:Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
  • Sizes:Available in stock lengths.
  • Cert. GVYI.R37913
  • Access & Mobility AUS/NZ:NCC D2.15 & D3.3. AS1428.1. NZ BC Compliance Doc. D1/AS1 1.3.2.
  • UK/EU:Approved Document M.
  • Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2(a) & App. C6.1.1.
  • UK/EU:Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
  • FRL & FRR-/240/30 and FD240.
  • when used with a BAL rated door bottom seal in accordance with AS 3959.

RAVEN RP96 Threshold Plate 1000mm

SKU WSRP96.1000.CA

In stock, within 1 week


Clear AnodisedBronze Anodised
1000mm3000mm2000mm

Total Price

$58.84
