A heavy duty, adjustable, automatic
door bottom seal that is spring
loaded to lift clear of the floor when
the door is opened. Acoustically
designed, with a silicon gasket
for medium temperature smoke
applications. Operated automatically
by pressure on the door jamb or
stop by its adjustable strike. Includes
aluminium cover for concealed fixing
for face mounted installation.

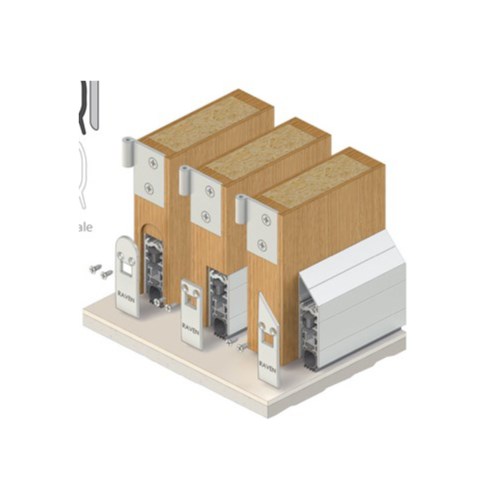

Location:Face mounted, semimorticed or fully morticed into
single and double solid core butt
hinged doors. Can be fitted into the
bottom rail of metal doors by the
fabricator. Minimum door thickness
of 40mm for semi and fully morticed
installations. For double door fully
morticed installations, plain meeting
Min/Max Gap:3mm to 19mm.
Finish:Satin clear (silver), bronze
anodised aluminium (15µm) or paint
at extra cost
Fixing:Concealed screw fix. Zinc
plated, cross recess head S.T.
screws supplied. Colour matched
escutcheon plates and face mount
aluminium angle included.
Seal:RP347Si. Black silicon rubber (SE).
Sizes:1220mm, 1070mm, 920mm,
820mm, 720mm, 600mm, 380mm
to 295mm(min). Seals cut back to
- Cert. GVYI.R37913
Acoustic AUS/NZ: NCC Spec. F5.5.
UK/EU: Approved Document E. Rated
to BS EN ISO 717-1.
Fire AUS/NZ:NCC Spec. C3.4. AS1530.4
& AS/NZS 1905.1. NZ BC Compliance
Doc. C/AS1 6.19.2 & App. C6.1.1.
UK/EU:Approved Document B. BS 476
Pt. 20 & 22 (similar to BS EN 1634-1).
- FRL & FRR-/240/60 and FD240.
- Gasket flammability index 1 when
tested to AS1530.2.
SmokeNCC Spec. C3.4. AS1530.7 &
BS EN 1634-3. Meets smoke leakage
rates specified in AS6905 & EN 13501-
2 “Sa”, “Sm”.
EnergyNCC Pt. 22.214.171.124 & J3.4.
Design for Access and MobilityHigh efficiency mechanism to assist
with the closing force requirements
detailed in AS1428.1.
DurabilityTested to over 1,000,000
operating cycles without failure.
RAVEN RP99Si Door Bottom Seal 1070mm
