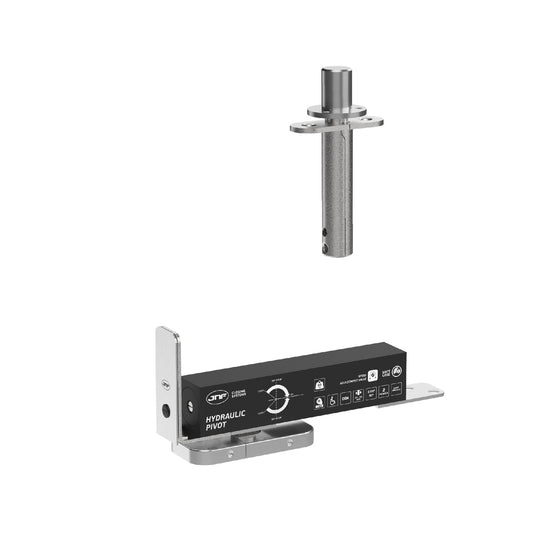

JNF Hydraulic Pivot 60kg Max, 850mmW Max - Hold Open 90Ø

The CAM system combined with hydraulics allows the closing control of large swing doors, while opening them with little effort. The doors can be single or double action, with minimum thickness 35mm.

The system is hidden inside the door, with only a small base on the floor, with bidirectional regulation and a rotation point on the roof or upper frame of the door with built-in bearing.

The closing control is carried out by two valves that can precisely adjust the initial and final closing speed, the final speed being especially important when the door has a lock installed.

In order to cover doors with weights from 10 to 500kg, lengths up to 3000mm and height up to 8000mm the system has force adjustment, which can be done with the door already installed.

One of the characteristics of this system is that the rotation point of the door can be from 50mm to the center of the door, with the installation being made from the top of the door, which allows the doors to go up to the ceiling.

Features:

Specifications:
